New Version 7.0 is available now

The Workplace Audiometrics software will take the boredom out of mass Audiometry testing, reduce the chances of error and provide the employers with a workable Hearing Conservation Scheme.
The Package can manage the following:
  1- Employee's personal data
  2- Employment history
  3- Medical history
  4- Hearing Test threshold data, including base line
  5- Hearing protector
  6- Bone / Spirometry / Tymp
  7- Potential Liability calculations
  8- Assessment of Audiological results against Regulation and Standards from around the world
  9- To Do List

It can generate comparative reports to indicate the onset of Hearing Loss.

Threshold test results are stored separately from personal, demographic and medical data so that an unlimited number of tests can be stored for each employee.

Simplicity of use
All the options and commands are easily accessible and clearly presented. Hearing Assessment available with one click of the assessment button

Data Entry
The employee data covers employment history and Medical history.
The test data can optionally include Tympanometry , spiro metry and Bone conduction. Some audiometers allow capture of Air and Bone (AD 27)

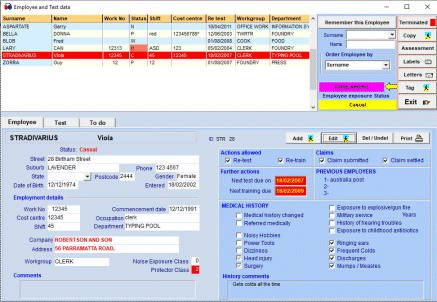

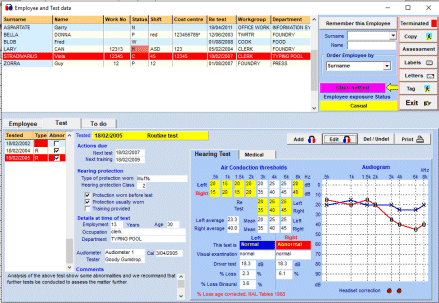

The Employee data entry screen

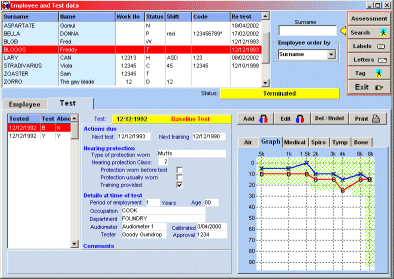

The Test data entry screen, Thresholds can be captured automatically from the audiometers listed below or entered via the keyboard or the mouse, by clicking in the audiogram grid.
Go top

Automatic Data Transfer from Audiometer
Automatic / Manual Tests Automatic hearing tests can be performed with one of the audiometers listed below and data transfered automatically to the computer. Manual tests and entry of archived or baseline data are also supported.

Audiometers Supported for data capture
 Interfaces directly with the following audiometers
Amplivox 170 / 116
Maico MA25e / MA30 / MA728m / MA800
Oscilla 910 / 930 / 950 / 960
Earscan
Microlab
Tracor RA 300 / 400 / 500
Rexton / Siemens AS53/ AS54 / DA63
Interacoustics AD27 / AS 216 / AD 226 (old) / AD 229
GSI 66 / 67
AudioScan 1000
Madsen Xeta
Danplex 300a
Hekto audiometer (by Horentek)
SiebelSound Duo

Capture via interfaces with the manufaturer's software
- Oscilla USB 300
- Interacoustics AD 226 (new)
- AD 629e
- AS 608
- Calisto
- Maestro
- Affinity
- OtoSuite
- Aurical
- MedRx
- Amplivox PC850 / Otosure
- Electromedica 800M

Reports

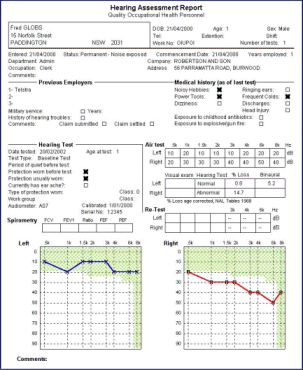

The above report shows an audiogram report. The report is highly configurable and can show Air conduction, Bone conduction Tympanometry and Spirometry, as required.

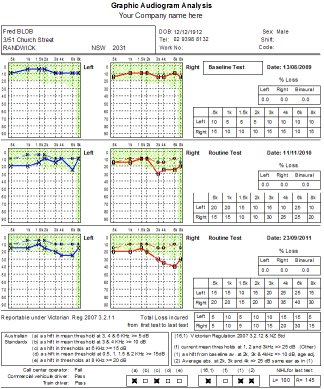

The above report shows all test in graphic format with the Baseline printed in dotted line on each test for comparison

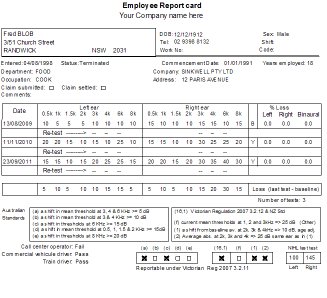

This is the Report card showing all tests for one employee, with the loss over the time range. At the bottom are the results of various standards for assessment.

The extensive list of reports include Reg 2007 3.2.11 for VIC, Test comparison, baseline shift, standard US OSHA Report, Lists & Mailmerge, and Potential liability, Form 411 for WA, While person impairement for NSW and ComCare and more.

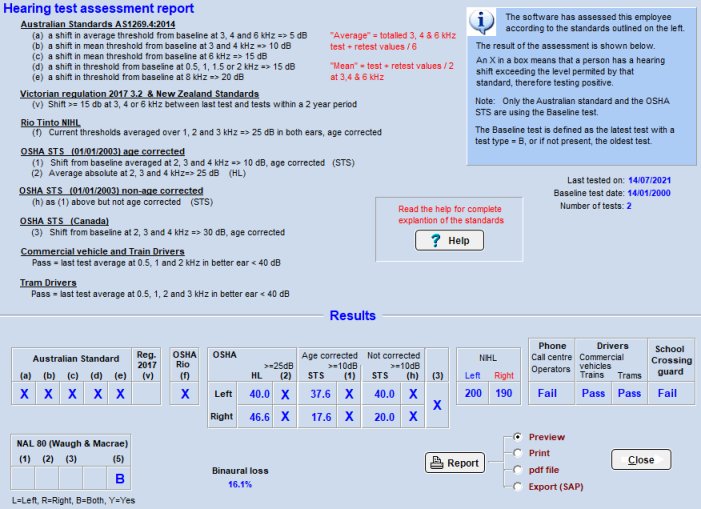

Quick assessment of results
Assessment can be obtained with the "Assessment" button. Positive tests can be easily identified.
Current tests include the Australian Standards, Regulations for each Australian state, New Zealand, US and Canadian regulation, Rio Tinto, OSHA. Train Driver, Tram Driver and Call center operator. Some of these tests include comparison of current test with either last test or baseline test as stated in the Standard.

Emailing Reports
All reports can be previewed, printed or saved directly as pdf or rtf files for saving in Argus, Medical Director or Genie . They can be attached to emails to Doctors or Specialists. For privacy reasons they can also be password protected.

Percentage of Hearing Loss
The Percentage of Hearing Loss is calculated automatically. A special detailed loss report is available for compensation and insurance claims. Choice of extended formula for Western Australia and normal formula for all other states

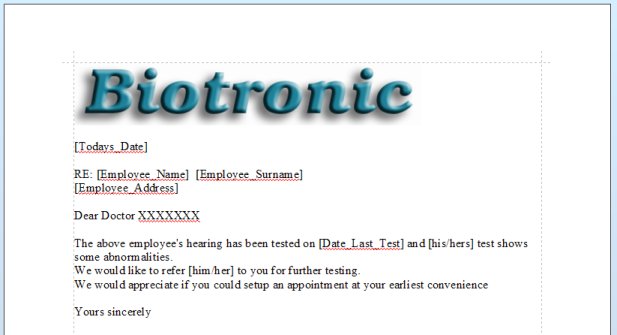

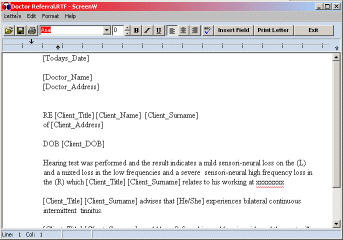

Template letters


A letter system in incorporated in the software for ease of use. Sample Template letters are included. More can be created with the built-in editor.
Merge fields can be inserted to automatically gather the relevant Employee or test data. A spelling checker is incorporated into the letter with Live spelling capability. This system is very easy to use and very effective.

Go top

International Standards
The program support the following country standards
-Australia (including state specific reports)
-New Zealand
-Canada All province regulations
-USA
-Malaysia
Each standard is supported with specific reports to support that standard. These standards have been incorporated on request from users from theses countries.

Test Comparisons
Many reports are available covering Regulation in all Australia states and some other countries like Malaysia, New Zealand, the USA and Canada. there is also an option to design your own reporting criteria and to save that criteria for later use, if none of the current reports are suitable.

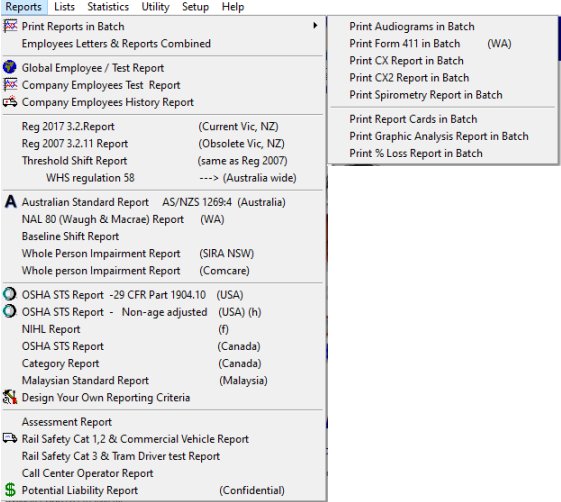

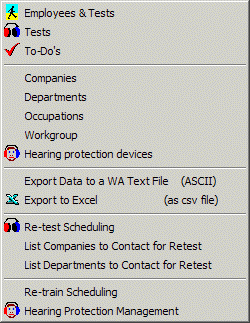

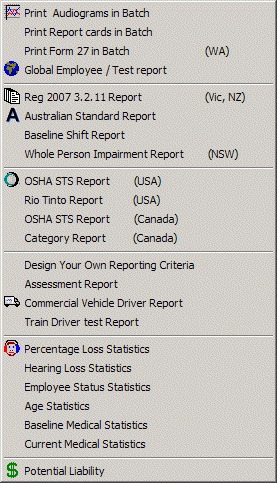

See below the Report and List menu options. Please note that new reports are regularly added, so this list may not be complete at the time of viewing.


Other reports include the following:

Hearing Protection Management
Allows you to spot unsuitably protected Employees.

Australian Standards 1269
The program can optionally support the latest Australian Standard for Hearing Tests. This includes a re-test at 3, 4 & 6kHz. Reports can include the mean results to comply with the standards.

OSHA STS Reports and Calculations
The program can produce these report with an assessment based on the calculation either age corrected or not.

Your own Standards
The program has an option to create your own standard criteria. You can create several sets and save them to be re-used at a later stage. There are enought selection parameters to cover any criteria.

Re-Test Management
Re-Test Management Lists Employees in who need to be re-tested, allowing you to plan and manage timely re-tests. Re-test gap can be adjusted as required by local regulations.

Training Management
Allows you to plan and manage training in advance.

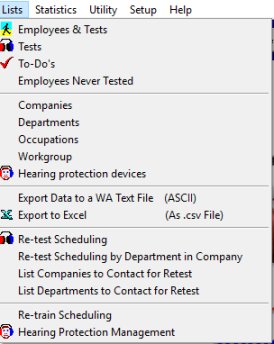

The listings available are:

Demo Version
A working Demo version can be downloaded from the Downloads > Demos page
This is a live working demo, limited to a number of entries and with the setup option disabled.
Once the demo is installed, the manual is available in the install folder as Manual.pdf

Tutorial
You can select and watch a number of tutorial videos by clicking on the button above.

Requirements
The software will operate on all versions of Windows including Windows 10 (32 and 64 bit).

Availability
This software package is available now. It comes on CD or USB key, with a printed manual. The software has on-line documentation. If you specify one of the audiometer supported, we also supply a free computer interface cable. Additional cable are also available at a cost if required.

Technical Support
Free technical support by telephone is available for a period of six months after purchase. This include free updates if available during this period. Technical support can be renewed on a yearly basis.
